Shanghai Qifan Subsea Composite Power Cable (Lead Sheath) submarine cable
submarine power cable is a major transmission cable for carrying electric power below the surface of the water. It is also possible to use submarine power cables beneath fresh water.

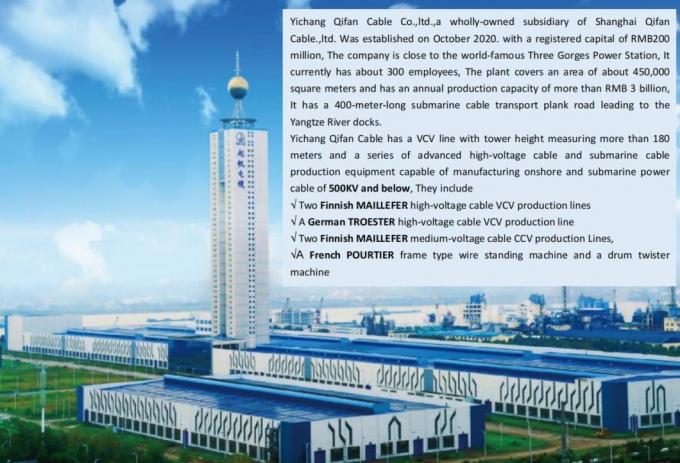

Yichang Qifan Cable Co.,ltd.,a wholly-owned subsidiary of Shanghai Qifan Cable.,ltd. Was established on October 2020. with a registered capital of RMB200 million, The company is close to the world-famous Three Gorges Power Station, It currently has about 300 employees, The plant covers an area of about 450,000 square meters and has an annual production capacity of more than RMB 3 billion, It has a 400-meter-long submarine cable transport plank road leading to the Yangtze River docks.

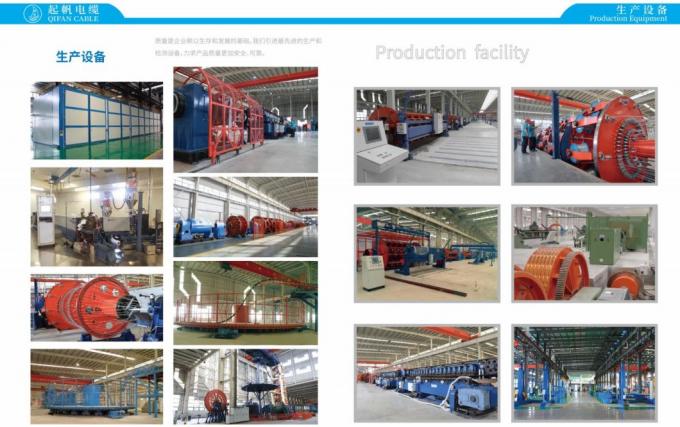

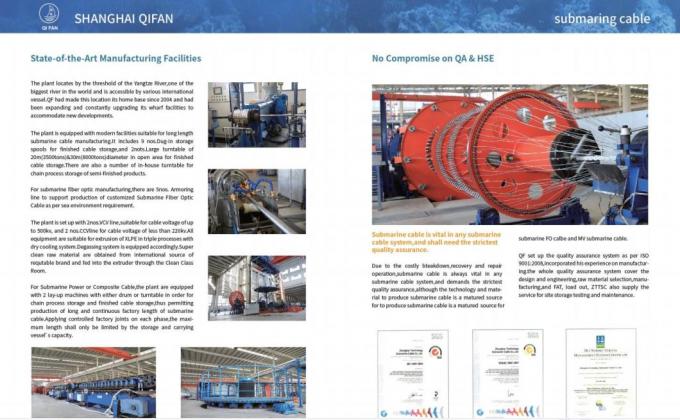

Yichang Qifan Cable has a VCV line with tower height measuring more than 180 meters and a series of advanced high-voltage cable and submarine cable production equipment capable of manufacturing onshore and submarine power cable of 500KV and below, They include
√ Two Finnish MAILLEFER high-voltage cable VCV production lines
√ A German TROESTER high-voltage cable VCV production line
√ Two Finnish MAILLEFER medium-voltage cable CCV production Lines,
√A French POURTIER frame type wire standing machine and a drum twister machine

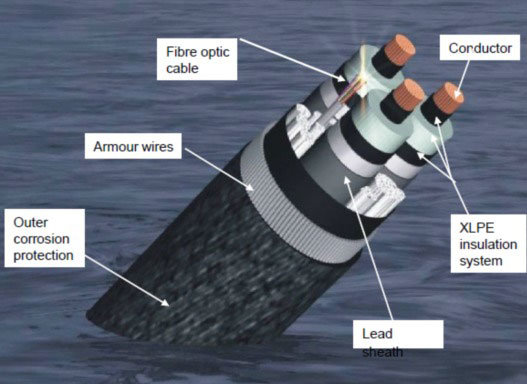

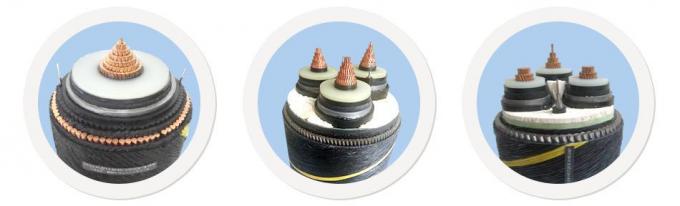

Construction
System voltage: U≤33kV
Conductor: Circular stranded copper or aluminum conductor constructed of round or profiled wires.
Insulation: Cross-linked polyethylene (XLPE) or TR-XLPE
Metallic Screen: Copper wire, copper tape and lead alloy sheath , etc.
Radial water barrier: Semi-dry design: Laminated aluminum foil
Dry design: Lead alloy sheath
Wet design: PE sheath
Armor: Three-core: Galvanized steel wire
Single-core: Magnetic galvanized steel wire,
Non-magnetic HD copper wire, stainless steel wire
Armor bedding & serving: Polypropylene yarn
|
System voltage:
|
30kV≤U≤500kV
|
|
Conductor:
|
Circular stranded copper or aluminum conductor constructed of round or profiled wires.
|
|
Max. CSA 3000sq.mm
|
|
Insulation:
|
Cross-linked polyethylene (XLPE)
|
|
Metallic Screen:
|
30kV≤U≤66kV: Copper wire, lead alloy sheath
|
|
U≥110kV: Lead alloy sheath
|
|
Radial water barrier:
|
Semi-dry design: Laminated aluminum foil
|
|
Dry design: Lead alloy sheath
|
|
Armor:
|
Three-core: Galvanized steel wire
|
|
Single-core: Magnetic galvanized steel wire; Non-magnetic HD copper wire, stainless steel wire
|
|
Armor bedding & serving:
|
Polypropylene yarns
|
Types & Purposes
For offshore wind farm
-Export cable to transport the total generated power from offshore substation to onshore substation
For interconnection
-Interconnecting grids of countries
-Power supply from mainland to isolated islands
Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.
